SPLAY CAP BBC 1005 Series
D
R
Y

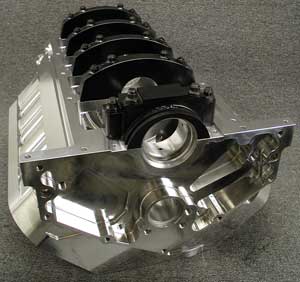

1005– These blocks are for larger displacement drag race engines. They feature standard bore spacing and utilize a BBC head bolt pattern. It utilizes a +.400" cam height and spread pan pattern. Maximum recommended bore is 4.600" for nitrous engines and 4.625" for normally aspirated. If you are building a large engine, then this model will fix all your block problems.
-
4.840" Bore space
-
Deck heights: 11.100” or 11.625”
-
Lifter size: .842 (stock) or .904
-
Splay bolt main caps (front four)
-
Plus .400" cam height
-
Stock distributor location
-
Utilizes remote filter
-
DRCE oil pan pattern
-
Dry block
OPTIONS:
Non standard deck heights
Non standard cam size
Head stud kit
Replacement sleeves
-
Premium CN forged Billet material
-
CNC machined by CN Blocks
-
Includes block, caps, main studs, and sleeves
-
Stock bore spacing
-
Stock head bolt pattern
-
Chevrolet main size
-
Aluminum main caps
-
1/2” main studs
-
Lifter sizes - .842" (stock) or .904"
-
Stock cam journal size
-
Stock lifter angle and spacing
-
Priority main based oiling
-
Special CN cam oil cross
-
#12 oil inlet
-
Dual starter bosses
