5.0" BORE
BBC
1070 Series
D
R
Y

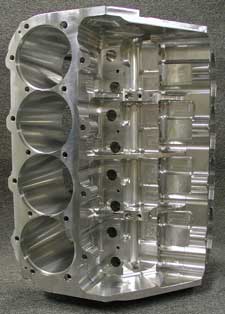

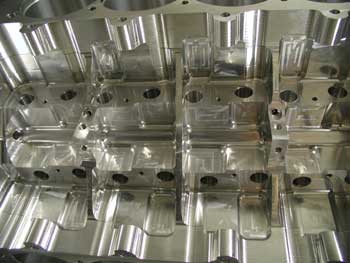

1070 The 1070 series is a drag race 5.0" bore space splay cap block. The 1070 is offered in a spread .110" or spread .160" main spacing configuration and it features a 1.0" high cam. These blocks are very popular for any 5.0" bore space motors from 500 to 800+ cubic inches. The 1.0" high cam design is well suited for Alan Johnson, Sonny's wedge, and Sonny's semi-hemispherical cylinder heads.
-
Standard 5.0 bore space
-
Plus 1.0 cam height
-
Standard deck heights 11.100, 11.500 or 11.625
-
Any popular 5.0 head bolt pattern
-
Splay bolt main caps (front four)
-
Lifter pattern to match cylinder heads
-
Dry block
OPTIONS:
Non standard deck heights
Non standard cam size
Head stud kit
Replacement sleeves
-
Premium CN forged Billet material
-
CNC machined at CN Blocks
-
Includes block, caps, main studs, and sleeves (installed)
-
Standard deck heights available - 11.100, 11.500 and 11.625 Optional deck heights from 11.00 - 12.00
-
Head pattern to match cylinder heads
-
Big block Chevrolet main size
-
Aluminum main caps
-
Splay bolt main caps (front four)
-
1/2 main studs
-
Cam size to match cam core2 1/8, 55mm, 60mm babbit or roller bearings
-
Lifter pattern to match cylinder heads
-
Lifter sizes .904, .936
-
No distributor
-
Priority main based oil system
-
Special CN Blocks cam oil cross
-
#12 AN oil inlet
-
Dry sump or external wet sump only
-
Valley oil scavenge
-
DRCE 10 3/8 oil pan pattern
-
Dual starter bosses
