CROSS BOLT BBC 1070YW Series
W
A
T
E
R

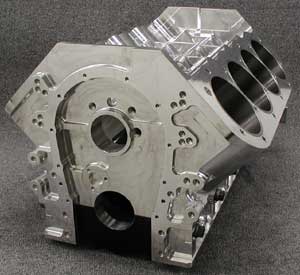

1070YW — The 1070YW series is a cross bolted, 5.0" bore space, BBC block. This block is intended for use in radical blower combinations. The 1070YW features spread .160" mains and a 1.00" high cam. This block allows the motor builder to use bores of 4.600” to 4.700”.
-
5.0" Bore space
-
Premium CN Billet material
-
CNC machined at CN Blocks
-
Includes block, caps, main studs, and sleeves (installed)
-
Deck heights—9.5”, 9.8”, 10.2” and 10.7”
-
Big Block Chevrolet main size
-
Aluminum main caps
-
All 5 main caps are cross bolted
-
9/16” main studs, 1/2” side bolts
-
Cam height—Plus 1.00”
-
Cam size & pattern to match cylinder head
-
Lifter pattern to match cylinder heads
-
Lifter sizes .904” or .936”
-
Priority main based oil system
-
Special CN Blocks cam oil cross
-
#12 AN oil inlet
-
Dry sump or external wet sump only
-
KB Olds oil pan pattern
-
GM bell housing pattern
-
Dual starter bosses
-
Recommend bore to 4.600” to 4.700”
-
Water cooling
OPTIONS:
Non standard deck heights
Non standard cam size
Head stud kit
Replacement sleeves
