Splay Cap SBC

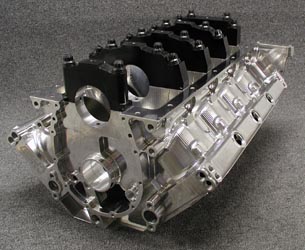

The 2040 is the ultimate aluminum small block Chevy. This small block is designed for high horsepower circle and drag racers. The 2040 series utilizes a splay main cap design and features wide pan rails. They are water cooled and have a +.390" raised cam position. The 2045 is a scalloped side , dry or wet sump model. The 2040 is a lightened version of the 2045 for a dry sump application.
2040 — Stock Bore space, .390" high cam, splay cap, water block, lightened SBC .
2045 — Stock Bore space, .390" high cam, splay cap, water block, SBC.
-
Premium CN Billet material
-
CNC machined at CN Blocks
-
Includes block, caps, main studs, and sleeves (installed)
-
Stock Bore Spacing
-
Deck height - 9.025”, 9.325” or 9.500” Optional deck heights 9.00” - 10.00”
-
Stock head bolt pattern
-
SBC 400 crank mains Optional 350 mains
-
Aluminum main caps Optional titanium center 3 caps
-
1/2” main studs and splay studs
-
Plus .390 “cam height (Rocket Block)
-
BBC or 50mm cam journal size Others available as an option
-
Cam bearing lock system
-
Stock lifter angle
-
Lifter sizes - .842”, .875", or .904"
-
+.390" distributor location or distributor delete
-
Priority based main oiling
-
Special CN Blocks cam oil cross
-
Left rear #12 AN oil inlet and 1/2" pipe front oil inlet
-
Standard dry sump Optional wet sump
-
Right rear valley scavenge
-
Rocket oil pan pattern
-
Dual starter bosses
-
Water cooling
OPTIONS for Stock Bore Center Splay Cap Blocks:
Non standard deck heights
Non standard cam size
Head stud kit
Replacement sleeves
